Buffer Tanks
160lt - 1000lt (with 1 heat exchanger)
BUFFER
Buffer Tanks are designed to directly store heat (hot water) produced by any type of boiler or even solar panels for large time intervals, even when the boiler or collectors are not producing heat.
The heat-insulating material that surrounds the inner container provides a particularly high thermal insulation resulting in negligible thermal losses.
In this way a great economy is achieved, since we can use hot water, either for heating or even for DHW (if it is present in the circuit and container of one of the other categories), without the operation of any of the above heat generators and even for many hours.
They can also be used for cold water storage, with the difference that instead of being connected to a boiler, it is connected to a chiller.
Our inert containers feature multiple insertions and extractions to provide plenty strong connections.
Suitable for application of any size or requirement.
- TECHNICAL SPECIFICATIONS -
SPECIFICATIONS
Heat Exchangers for the transfer of thermal energy:
- Heat exchangers for the transfer of thermal energy:

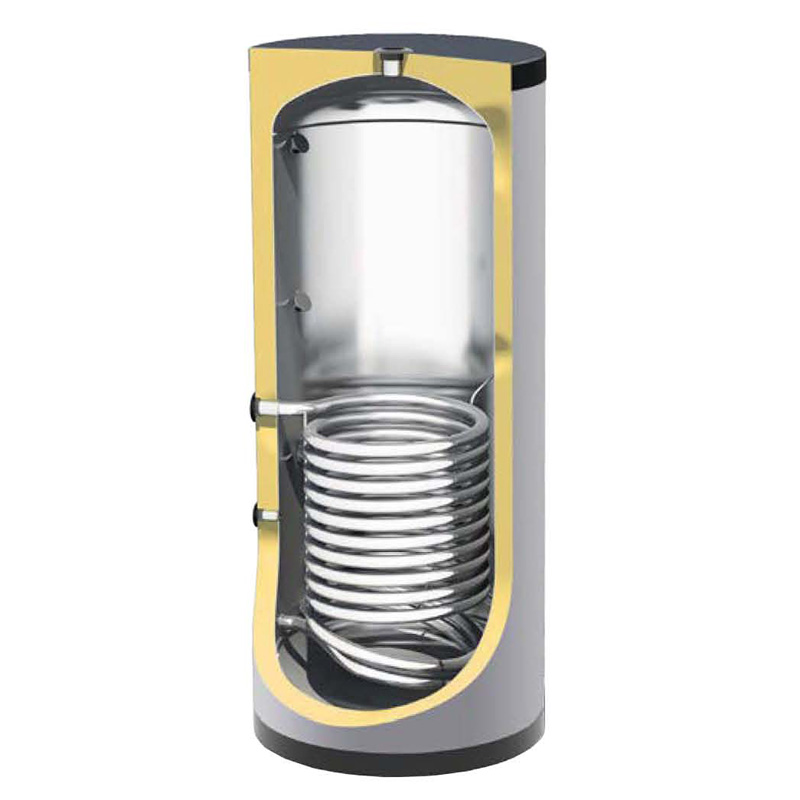

Internal coil type heavy duty steel (type Tubo) integrated in the lower part of the buffer tank, for the
connection to the solar collector.
Optional internal coil type heavy duty steel (type Tubo) integrated in the upper part of the buffer tank, for the connection of the secondary heating source. - Thermal insulation: which minimises heat losses, maintaining the hot water temperature:
Expanded ecologically safe polyurethane for up to 500lt capacity types.
Flexible removable insulation of 70mm thickness , for the 800lt and 1000lt capacities. - External housing of special PVC for excellent aesthetics

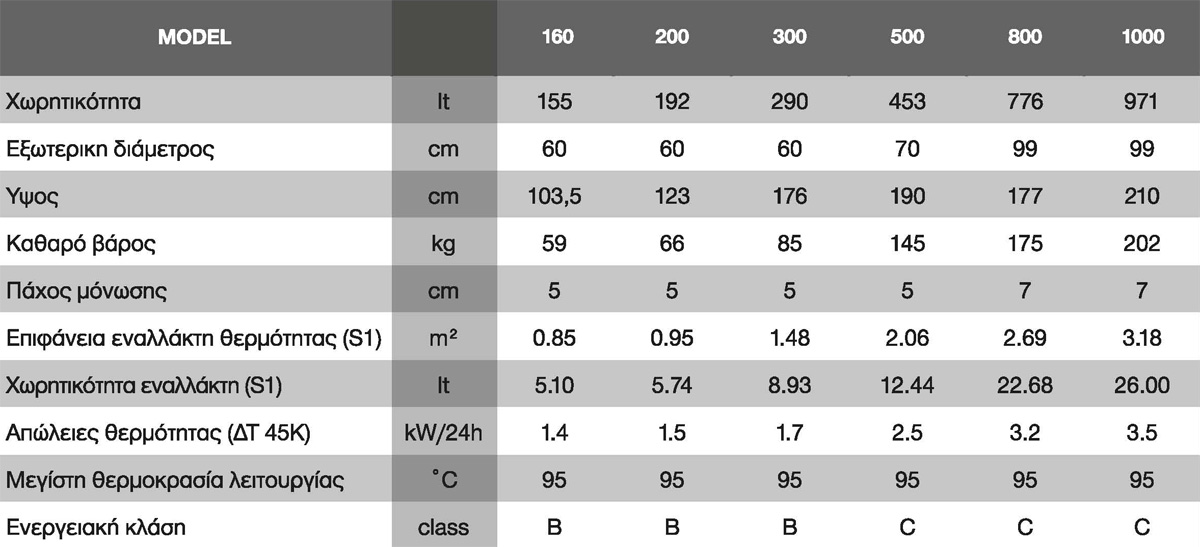

MODEL
ΑΝΑΜΟΝΕΣ
- DIMENSIONS -
TYPE - DIMENSIONS
